IDTECK IP FGR006 - Đầu đọc vân tay & thẻ 125Khz

Model

IP- FGR006

CPU

32bit ARM9, Dual 8bit
Microprocessor

Memory
Module

Finger
print
Module

Program
Memory

1MByte Flash Memory

Data
Memory

1MByte / 2MByte / 4MByte
Flash Memory

Controller

Program
Memory

128KByte Flash Memory

Data
Memory

256KByte Flash Memory, 4KByte SRAM

Fingerprint User

1,000 / 2,000 / 4,000
Fingerprint Users

Fingerprint Templates Size

800Bytes for 2 Fingerprint Templates

Read Range

IPC80 / IPC170 : Up to 4 inch (10cm)

Reading Time (Card)

30ms.

Verification Time

Less than 1sec.

Identification Time

Less than 2sec.

Power / Current

DC 12V / Max. 350mA

External Reader Port

N/A

Communication

RS232 / RS422 / RS485 (Max.32ch),
Ethernet (External Ethernet
Module required)

Baud Rate

9,600bps (default) / 4,800bps / 19,200bps / 38,400bps (selectable)

Input Port

2ea: External LED Control,
External Buzzer Control

Output Port

3ea: Error-Output , OK-Output, Temper-Output (Open Collector Output)

Output Format

26bit Wiegand (default)
ABA Track II (optional)

LED Indicator / Beeper

3 Array LED Indicators / Piezo Buzzer

Operating
Temperature

-20°C ~ +60°C

Operating Humidity

10% to 90% relative humidity
non-condensing

Color / Material

Pearl Dark Gray and Light Gray
/ Polycarbonate

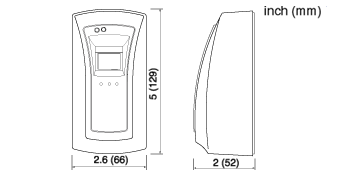

Dimension (W x H x T)
/ Weight

66mm x 129mm x 52mm
/ 259.5g (0.57lbs)

Certification

FCC, CE, KCC, RoHS

Resolution

500dpi

Capture Image Size

412 x 302 pixels

Extraction Image Size

260 x 300 pixels

Sensing Area

13 x 15.2 mm

Scanner

High Quality Optical Sensor

FAR (False Acceptance Ratio)

0.001%

FRR (False Reject Ratio)

0.1%

ESD (Electro Static Discharge)

15KV
