IDTECK NEO RF245 - Đầu đọc thẻ khoảng cách xa


  • Mã SP: NEO RF245
  • Thương hiệu: IDTECK
  • Xuất xứ: Hàn Quốc
  • Bảo hành: 24 tháng

Gọi đặt mua: 0904981240 (7:30-22:00)


  Reliable Stability

* Stable Reading Range of NEO RF245
  If used with IDA245(N)/IDA245(N)H2 Active Tag, reading range can be adjusted up to 15 M depending on the installation environment.
  NEO RF245 : Up to 15m(49.2ft)

* Prevents Overlapping Identification Error
  The tag of the registered vehicle is stored in the memory to prevent overlapping identification of tags.

* Prevention of Multiple Reading in case of Two Vehicles Approaching the Gate at the Same Time
  Eliminates multiple readings as it only reads the vehicle’s tag that approaching the sensor (loop coil).

* Multiple Card/Tag Identification
  Identifies 30 cards per second, which is suitable for logistic tracking when RF tags are attached to the logistics.

* 90° One-directional Antenna for Long Range Identification (360° Omni-directional Antenna Selectable)
  Includes 90° one-directional antenna for stable long range identification. 360° omni-directional antenna is also available
  for asset tracking and personal tracking.

* Reading Angle Adjustable
  If the reader hood is attached to the mounting bracket, it adjusts the reading angle to prevent unnecessary readings from the sides.

  High Secrutiy Level
* Encrypted Tag ID Communication
  By using the secured algorithms between the reader and the tag, it offers encrypted tag ID communication

* Site Code Configuration

  Each tag is internally programmed with site code, which makes the readers to read the tags with configured site code. Different areas could
  be configured with different site codes to strengthen the security level by not allowing the readers to read unregistered tags.


  Utilized Various Applications

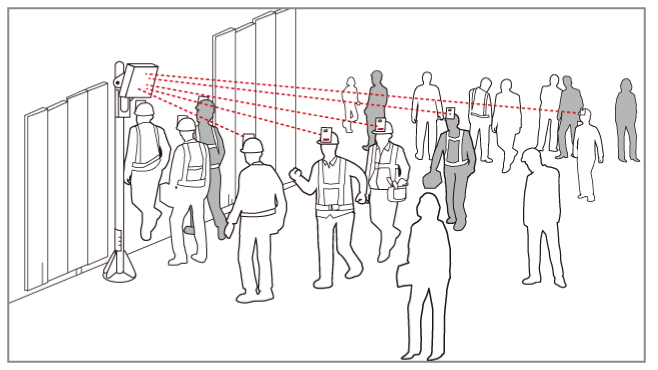

Personnel Tracking


  Various Integration

* Supports Output for Bar-Gate Control

  Offers separate output for bar-gate control to operate the bar-gate control relay. Transistor Output supports up to 100mA of electric current
  and sends signals for one second.

* Both 26 Bit Wiegand Output and RS232 Serial Output Supported

  Guarantees stable communication with all devices that supports 26 bit wiegand and RS232 communication.

  Easy To Use
* Outdoor Capacity (Weather-Proofed, IP66)

  NEO RF245 can be installed outdoors due to its 100% weather-proofepoxy molding.

* Automatic Card Configuration of 125 Channels

  The reader automatically configures default channel settings and site code when power is applied.

Giá thiết bị kiểm soát an ninh (kiểm soát ra vào) trên là Giá niêm yết thương mại của chúng tôi và được mô tả là Giá thị trường. Vui lòng liên hệ hotline TECHPRO 1900 2035 hoặc gửi email tới để đảm bảo giá sản phẩm được phê duyệt theo Hợp đồng.


Neo RF245 / Long Range Reader
CPU32bit Microprocessor and ISM Band Receiver
Read RangeUp to 15m, 49.2feet, Reading range control using IDA245(N)
※ Reading range varies depending on the installation environment
Mutiple ReadingUp to 30 Tags / second
※ Number of card reading varies depending on the installaion environment
Frequency2.45GHz, ISM Band
Receiving Site Code256 Site Code
ModulationEncrypted GFSK
Directivity90° One-directional Antenna,
360° Omni-directional Antenna (optonal / Suitable for access control and personnel tracking)
Receiver GainBetter than -80dBm
Power / CurrentDC12V / Max.50mA
Output Format26bit Wiegand and RS232, Bargate Output
RS232 Format9600bps, parity none, 8 Data bits, 1 Stop bit
Bargate Output1A (Power Transistor : 1s)
OTR (One Time Reading)
Control Input
Low Active Input, DC12V, Max,
50mA Current Drain
HOLD Control InputLow Active Input, DC12V, Max.
50mA Current Drain, Vehicle Detector Input
LED IndicatorBuilt-in Red, Green Color LED
BeeperBuilt-in Piezo Buzzer
-35°C to +65°C (-31°F to +149°F)
Operating Humidity10% to 90% relative humidity non-condensing
Color / MaterialIvory / Polycarbonate / Anodized Aluminum
(W x H x T)
7.0” x 7.0” x 1.6” (180mm x 180mm x 40mm)
Weight1.15Kg(2.5lbs) excluding Mounting Bracket
CertificateFCC, CE, KC, RoHS
